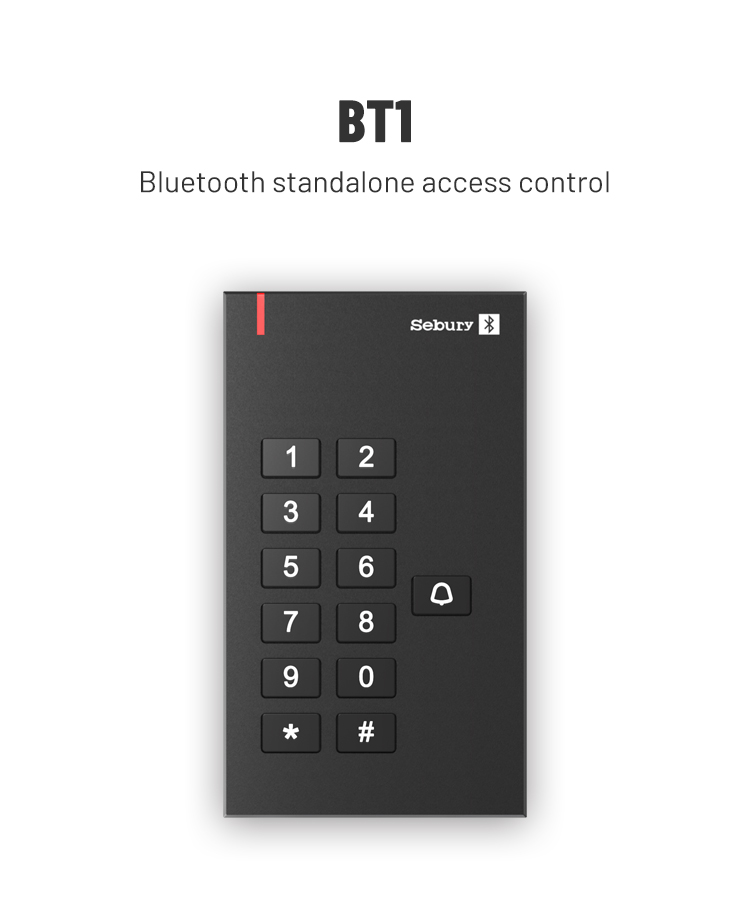

BT1
Bluetooth standalone access control
Working voltage:DC 12V±2V
Static current:≤ 30mA
Operating current:≤ 100mA
Product Size:130 * 75 * 17 mm

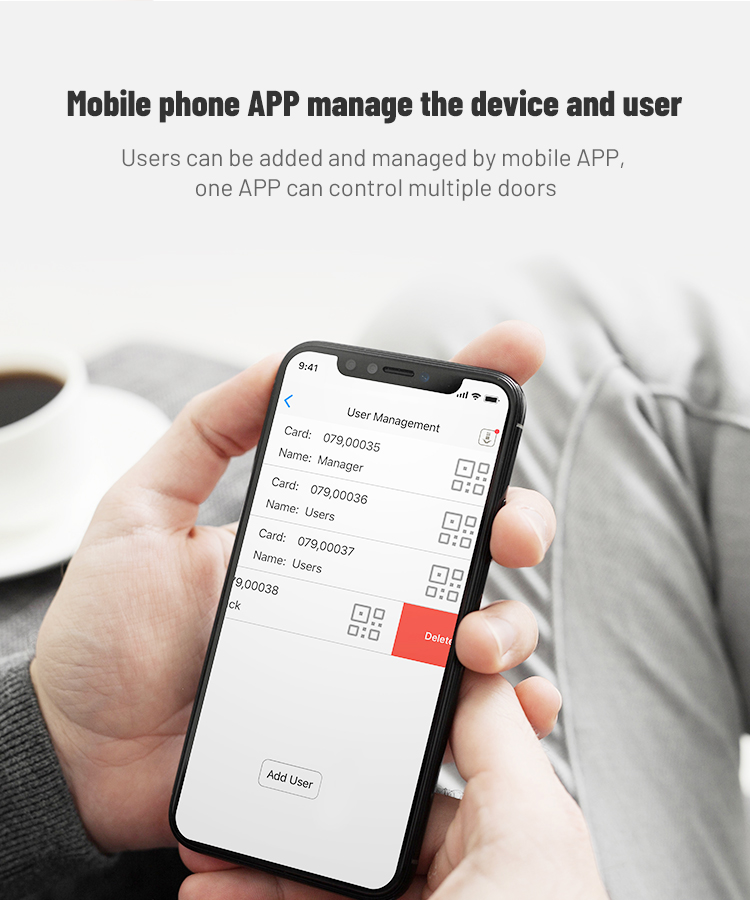

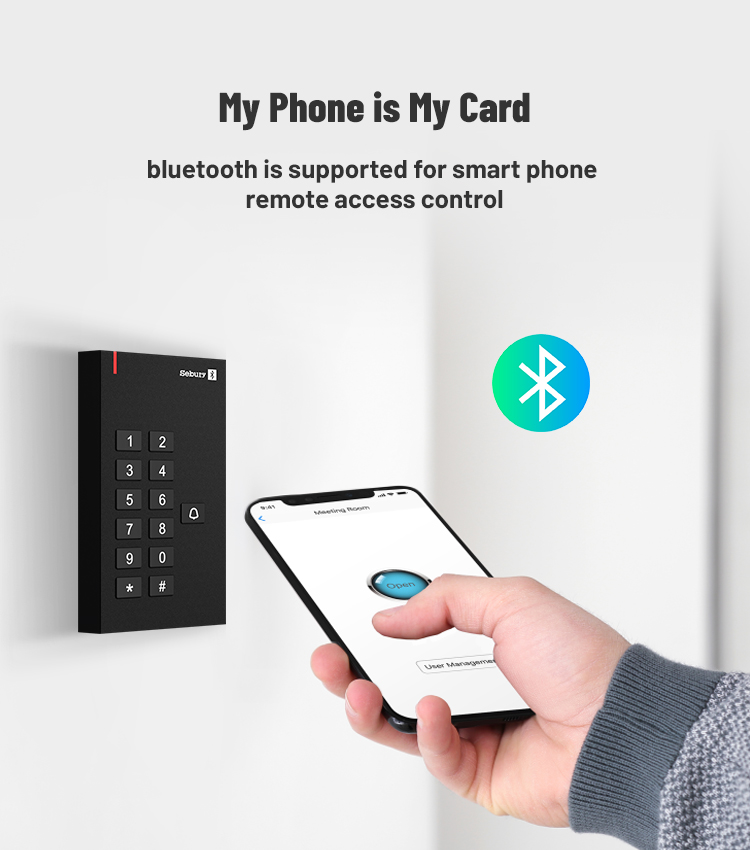

1.Mobile Bluetooth opens the door and an administrator shares it with multiple users

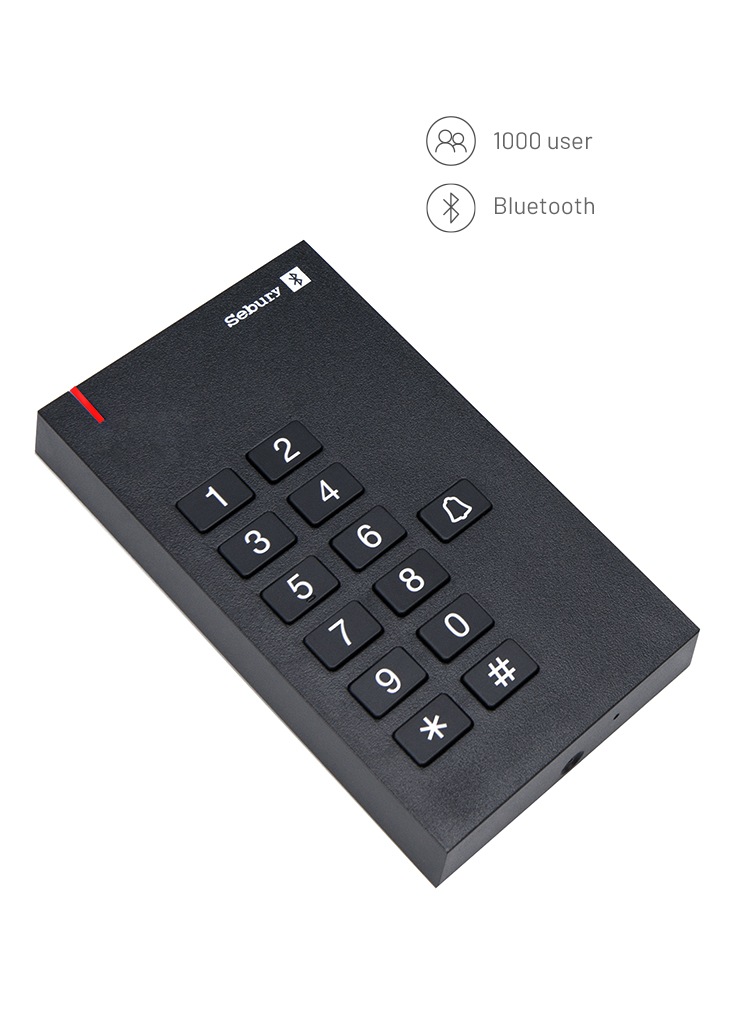

2.1000 user cards bound with 1000 user passwords, and the user can modify password by himself
3. Opening door modes: card, card + password, card or password, password
4.Opening time: 50mS, 1-98 seconds for normal mode, 99 seconds for switch mode

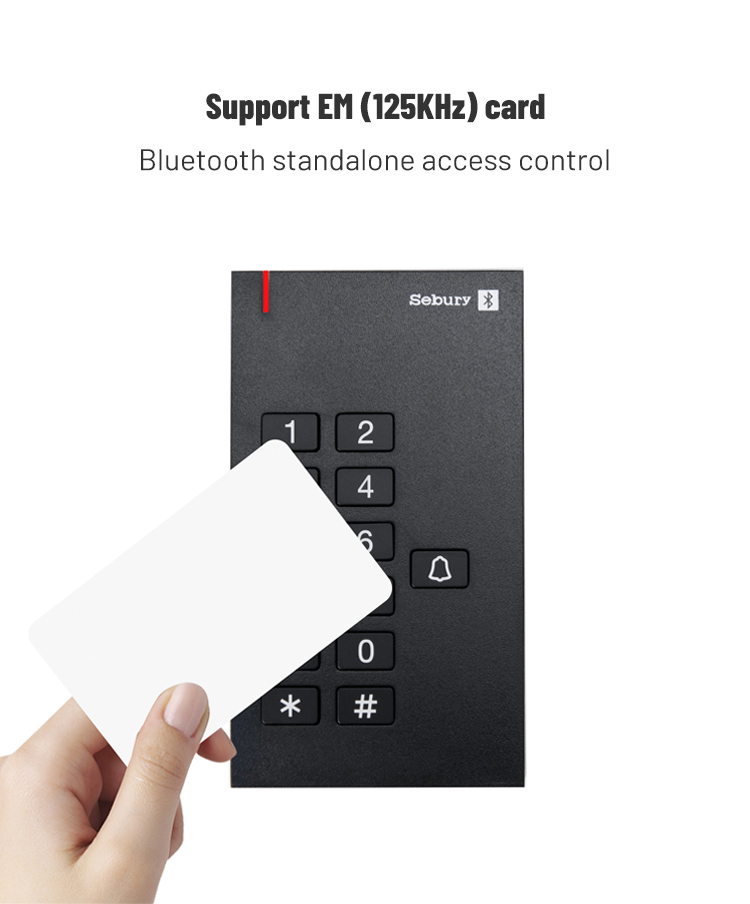

5.Support EM (125KHz) card
6.It can connect with the door magnetic detection for alarm or door closing prompts
7.Built-in high current MOS tube, can directly drive external alarm
8.Safe mode can be set: 10 times of invalid card or password will automatically lock the machine for 10 minutes

9.Can connect with an exit button, convenient to open the door from inside

10.Safety screw at the bottom to prevent malicious destroy

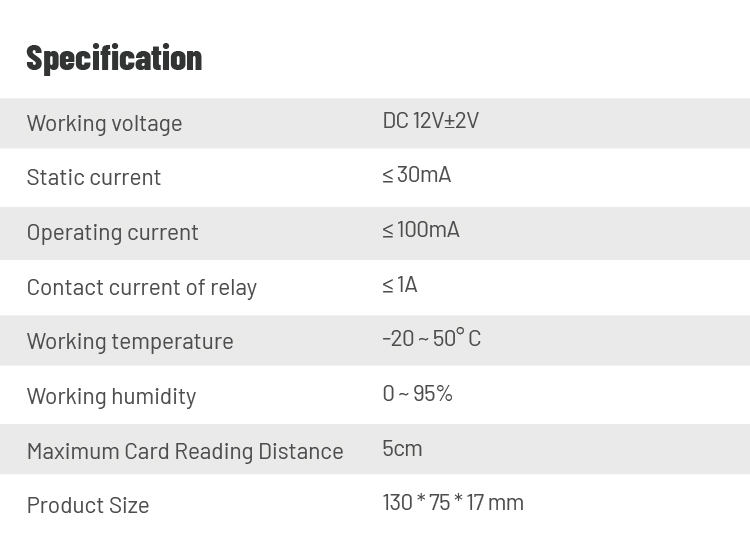

Specification

Working voltage:DC 12V±2V
Static current:≤ 30mA
Operating current:≤ 100mA
Contact current of relay:≤ 1A
Working temperature:-20 ~ 50° C
Working humidity:0 ~ 95%
Maximum Card Reading Distance:5cm
Product Size:130 * 75 * 17 mm
