Product model: R3-K
Product name: Metal waterproof PIN reader
Working temperature: - 40 ~ 60 ° C
Card reader type: EM、HID、IC、CPU
Product size: 128 * 82 * 28 mm

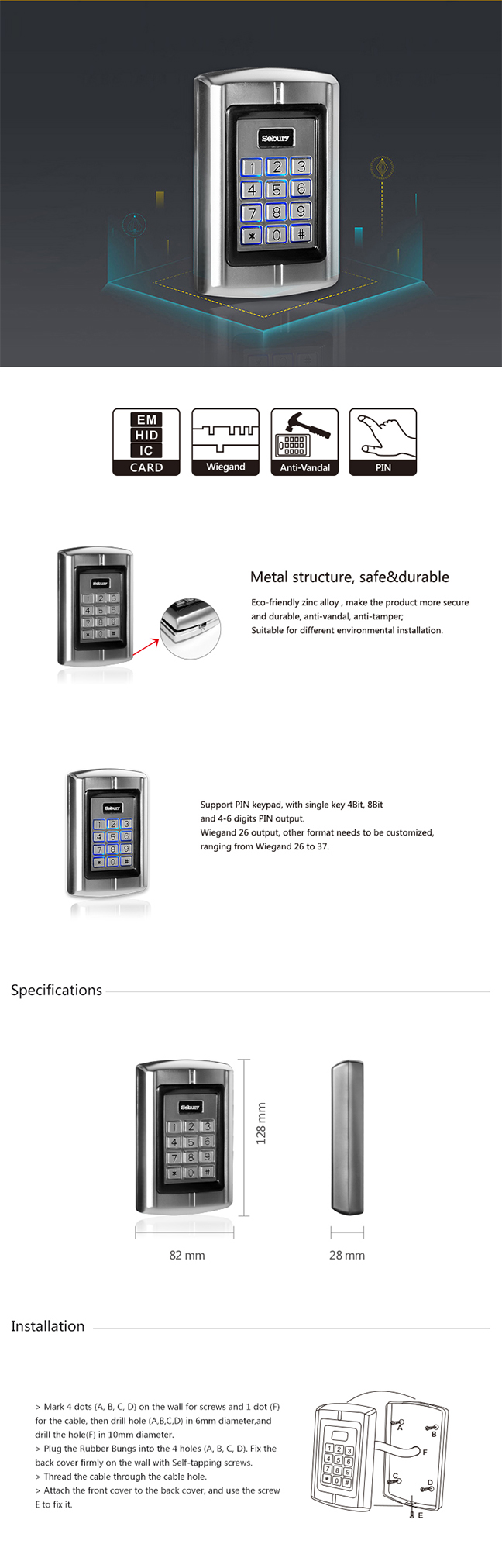

· Metal structure, waterproof, fully potted, confirms to Ip65
· Support EM, HID card(125KHz), or IC, CPU card(13.56MHz,ISO14443A)
· Support PIN keypad, with single key 4Bit, 8Bit and 4-6 digits PIN output.
· Wiegand 26 output, other format needs to be customized, ranging from Wiegand 26 to 37.

· Additional functions: anti-tamper, LED and buzzer controlled via external controller.


Specifications

· Input voltage: DC 12V±10%
· Standby current: ≤30mA
· Operating humidity: 0-95% (non-condensing)
· Dimension: 125mm × 82mm × 28mm

R3-K EM:
· Card: EM card (125KHz)
· Operating temp. range: -40° C~60° C (-40~140° F)

R3-K H&EM:
· Card: EM, HID card (125KHz)
· Operating temp. range: -40° C~60° C (-40~140° F)

R3-K M:
· Card: IC, CPU card (13.56MHz, ISO14443A)
· Operating temp. range: -20° C~60° C (-4~140° F)



     Name   Qty.        Remark
     Packing Box   1
     Card Reader   1        Reading type to see labels
     User Manual   1
     Rubber Bungs   4        White 6mmx24mm,used for fixing
     Self Tapping Screws   4        Stainless steel KA4mmx25mm,used for fixing
