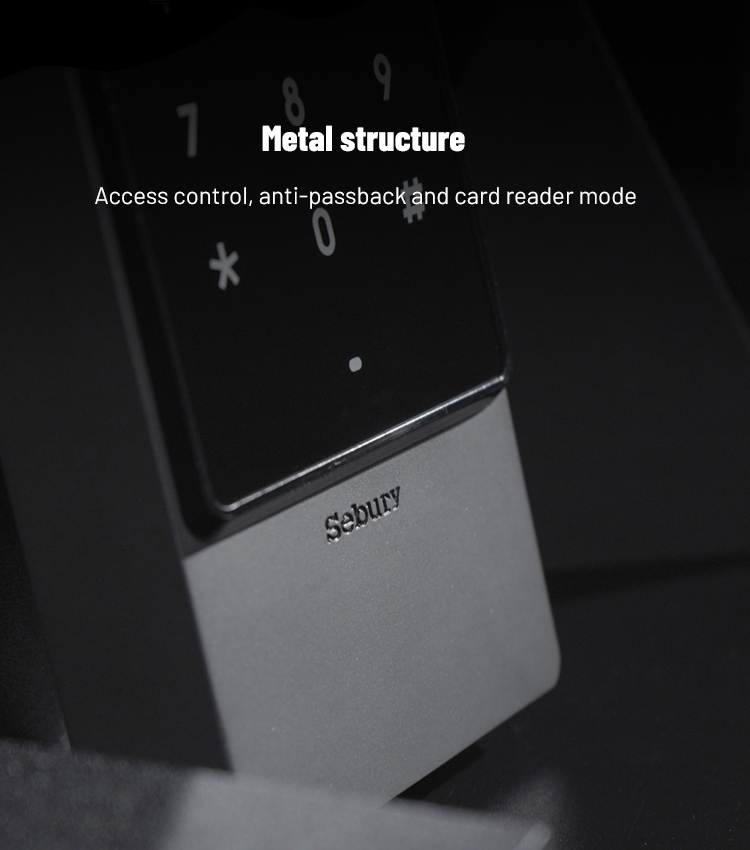

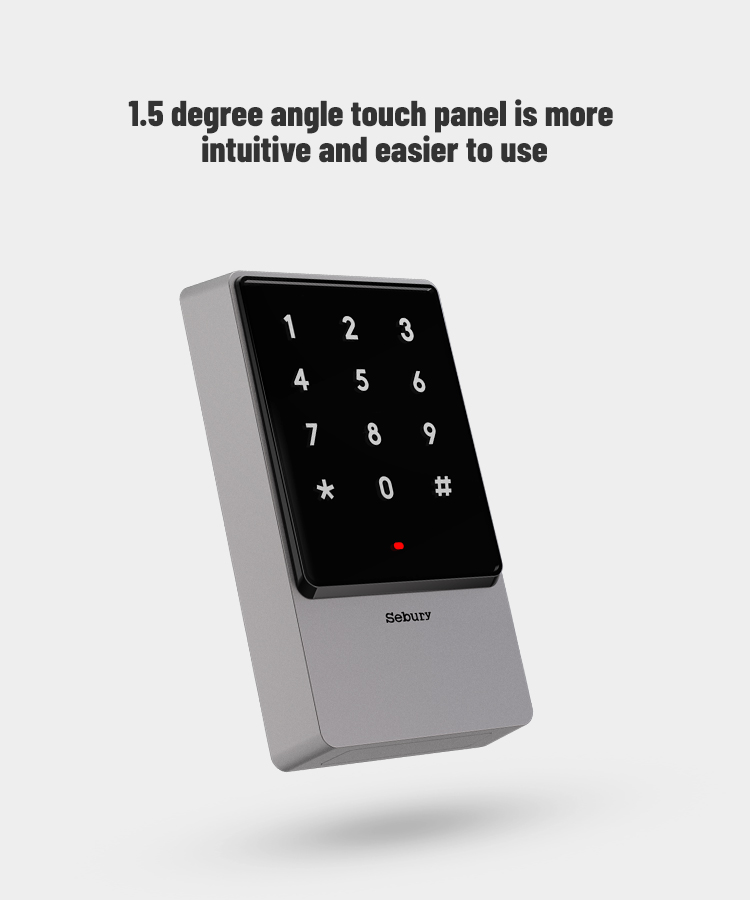

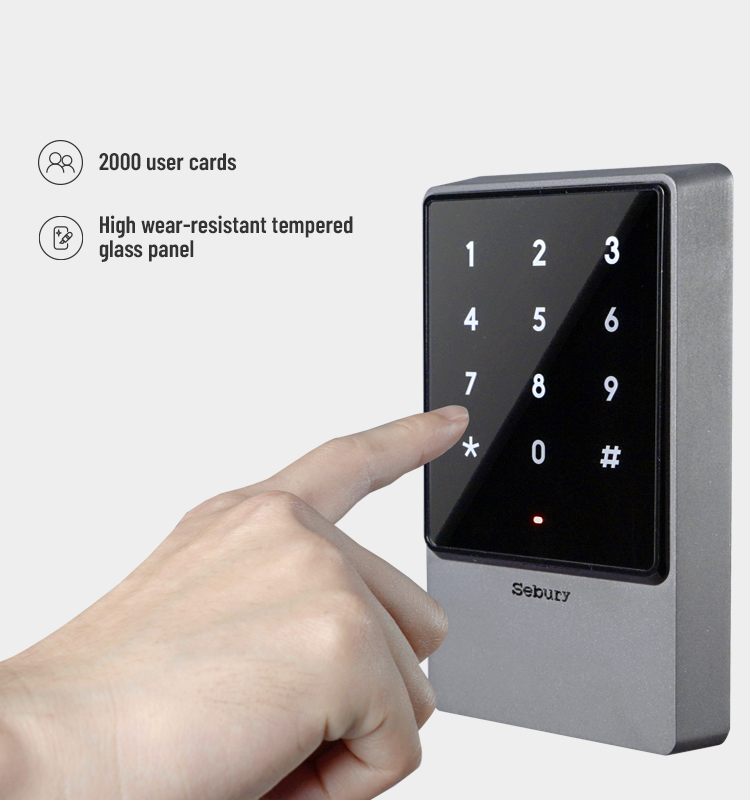

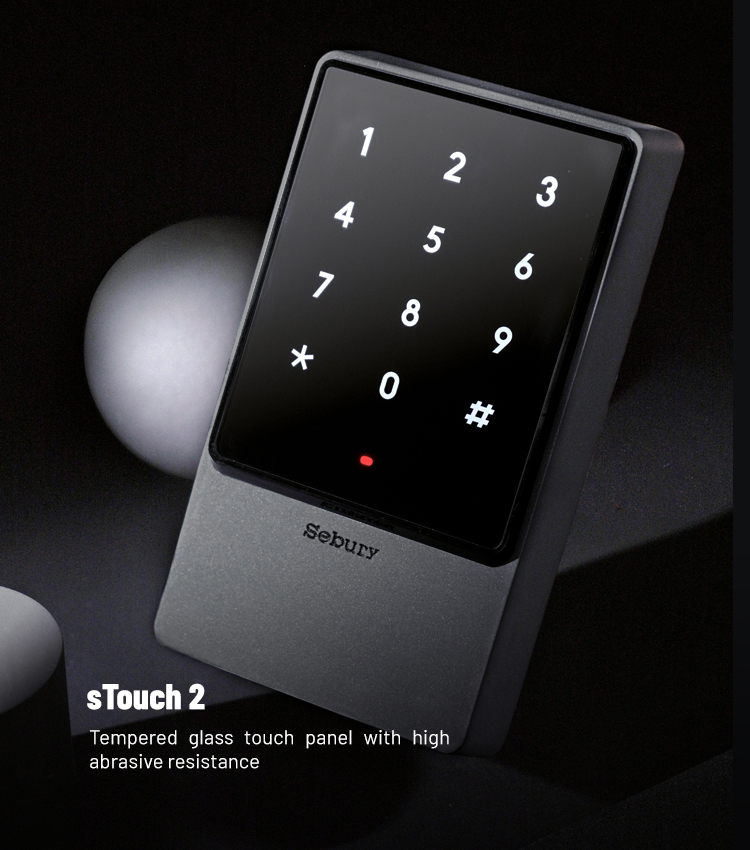

1.Metal structure, high strength wear-resistant reinforced glass panel, capacitive touch keypad

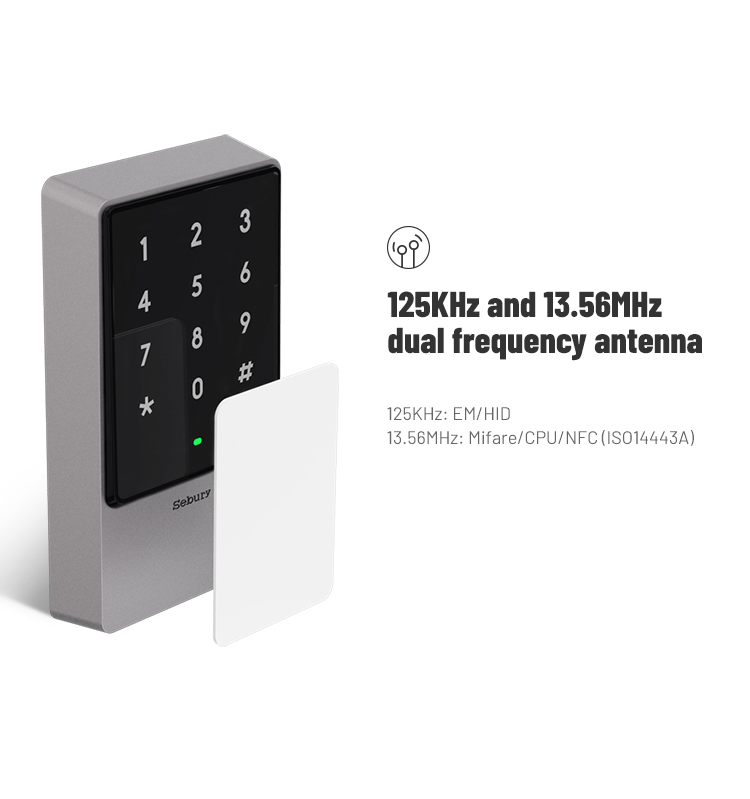

2.125KHz and 13.56MHz dual-band antenna, support EM/HID/MF/NFC cards

3.The backlight can be set to normal ON, normal OFF or automatic mode

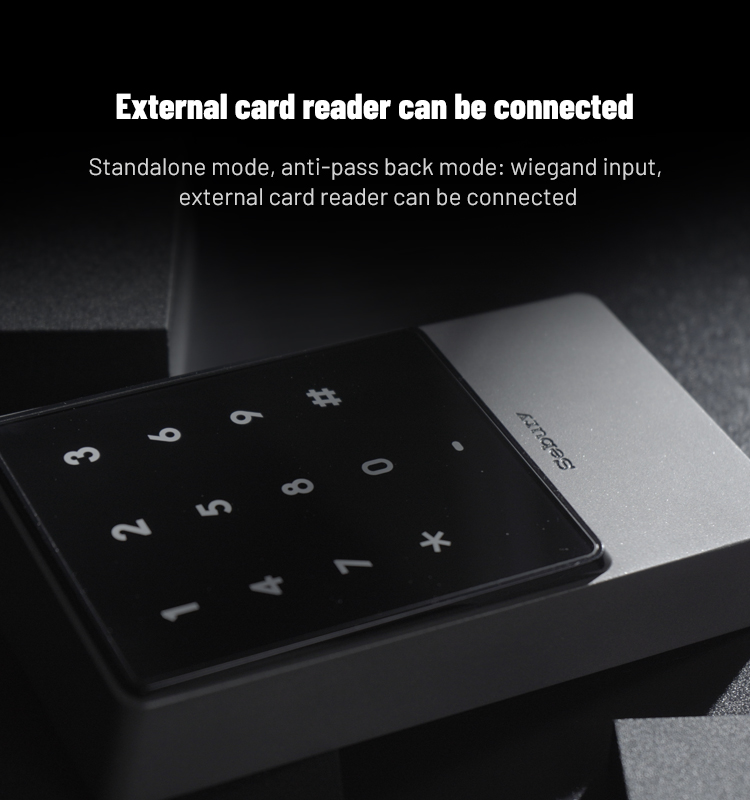

4.Standalone mode, anti-pass back mode: wiegand input, external card reader can be connected

5.Reader mode: wiegand output, LED and Buzzer control input

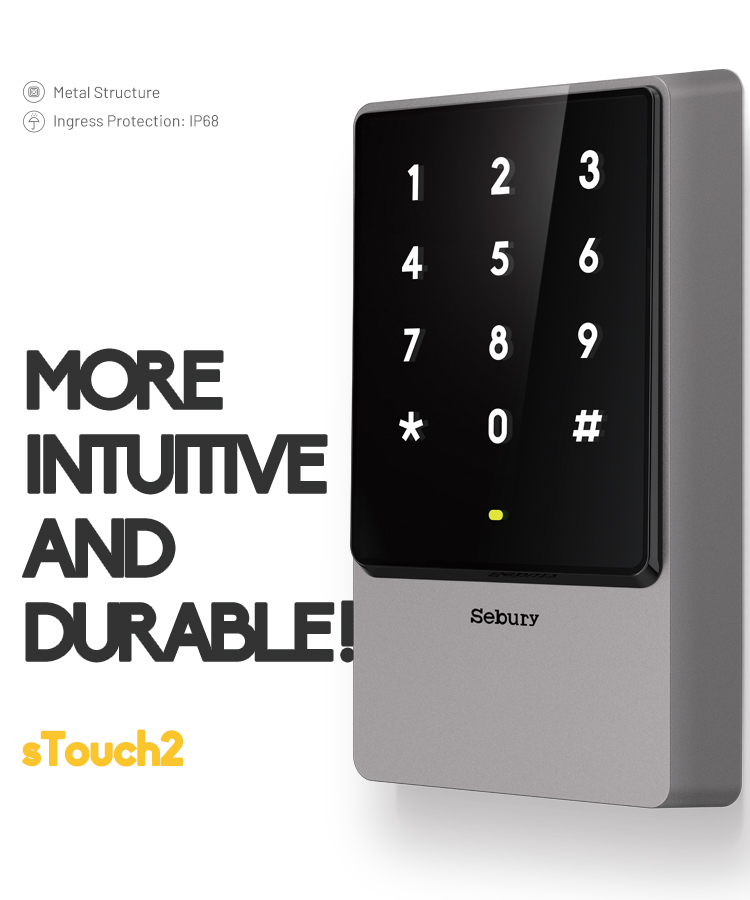

6.Fully potted process, IP68

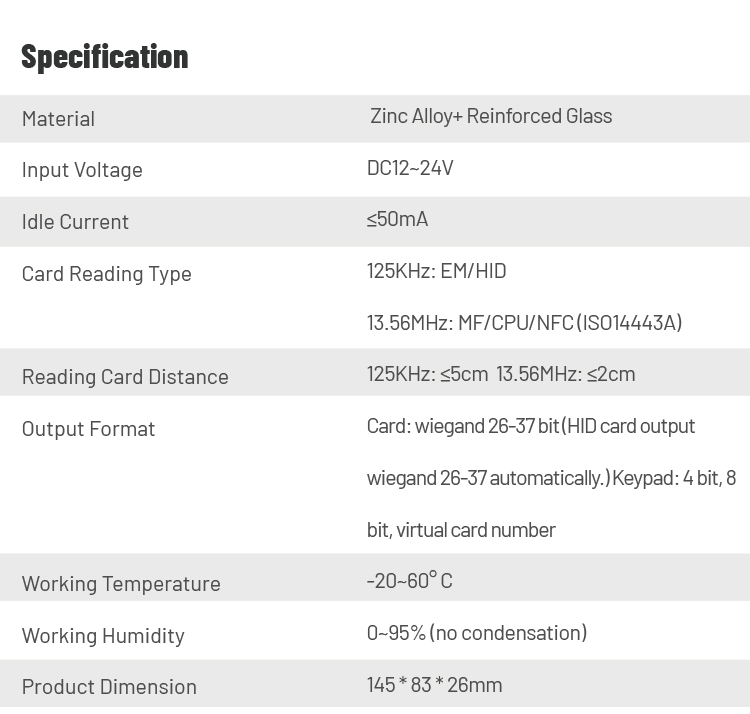

Specification

Material: Zinc Alloy+ Reinforced Glass

Input Voltage:DC12~24V

Idle Current:≤50mA

Card Reading Type:125KHz: EM/HID 13.56MHz: MF/CPU/NFC (ISO14443A)

Reading Card Distance:125KHz: ≤5cm  13.56MHz: ≤2cm

Output Format:Card: wiegand 26-37 bit (HID card output wiegand 26-37 automatically.) Keypad: 4 bit, 8 bit, virtual card number

Working Temperature:-20~60° C

Working Humidity:0~95% (no condensation)

Product Dimension:160 * 45 * 26mm
