1.The slim hemispheric body is inspired by observing the stars in planetariums
2.125KHz and 13.56Mhz Dual-band antenna, support to read EM/HID/MF/NFC cards
3.Can change the output format and the card reading type by sGuard
4.Fully potted process, IP65

Specification

Material：PC+ABS
Input Voltage：DC12V±10%

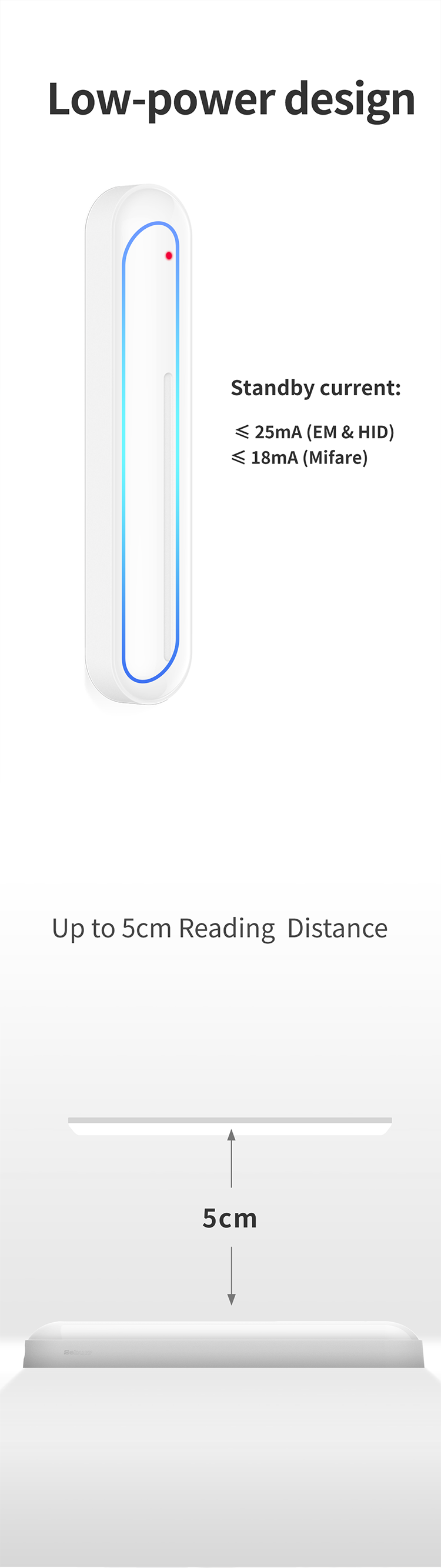

Idle Current：≤35mA
Card Reading Type：125KHz: EM/HID  13.56MHz: MF/CPU/NFC (ISO14443A)
Reading Card Distance：125KHz: ≤5cm  13.56MHz: ≤2cm

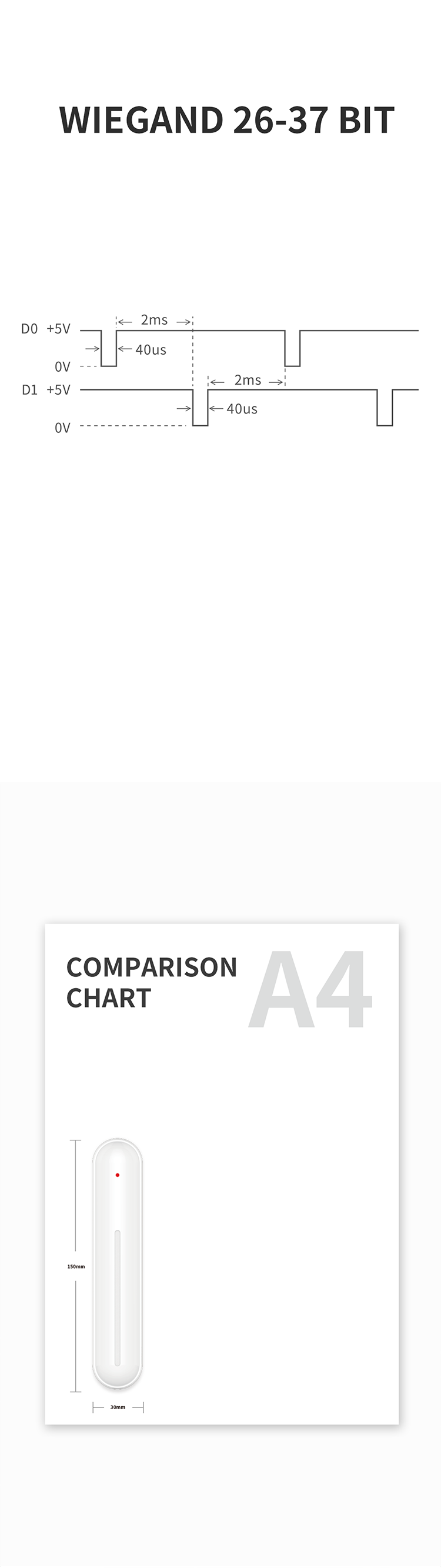

Output Format：Wiegand 26-37 bit (default wiegand 26 bit, customized other format, HID card output wiegand 26-37 automatically.)

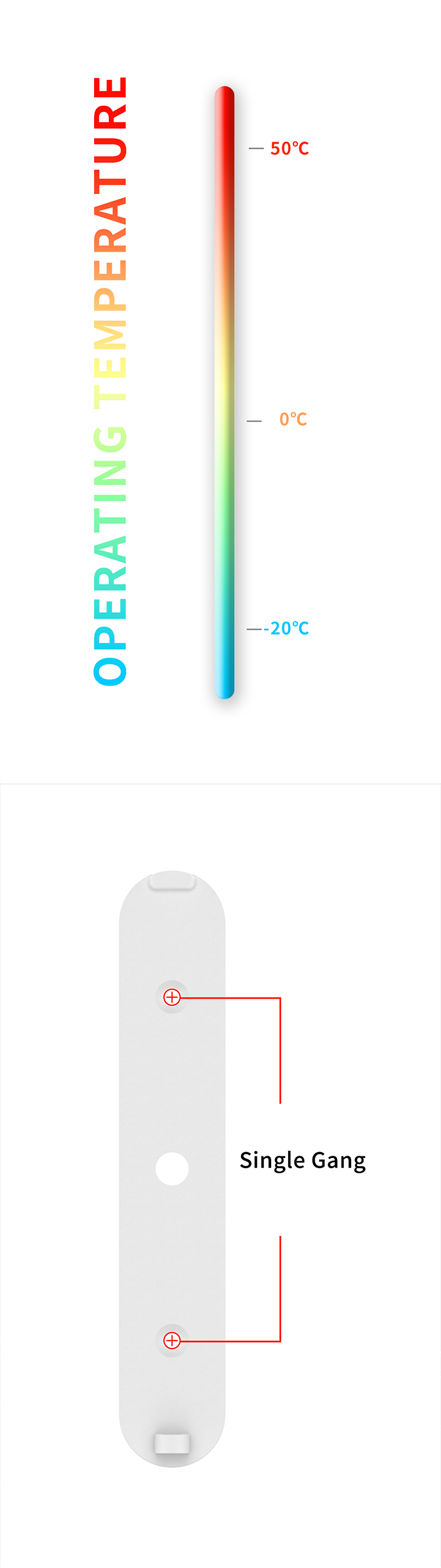

Working Temperature：-20~50° C
Working Humidity：0~95% (no condensation)
Product Dimension：150 * 30 * 20mm
