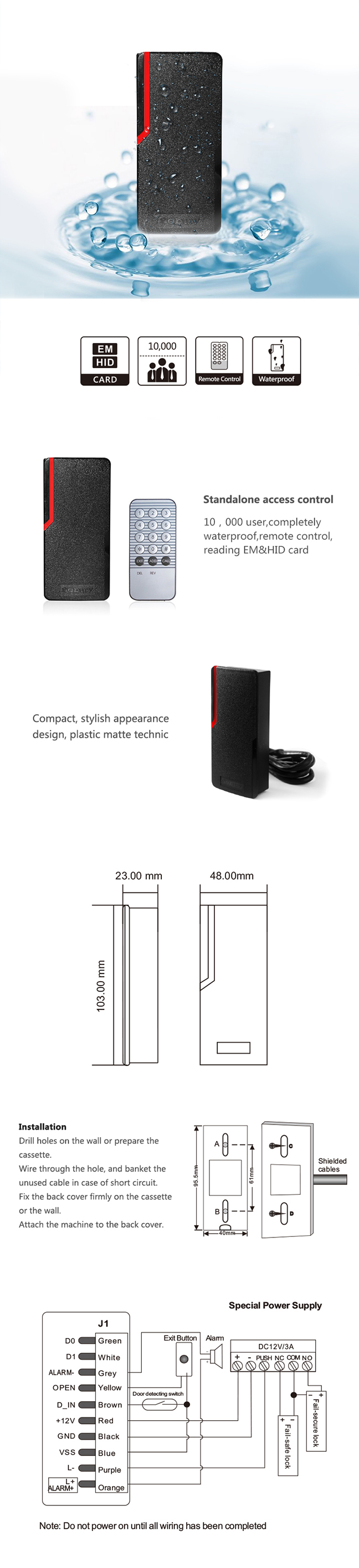

This waterproof access control/slave reader made by plastic. It support proximity HID and EM card. Attractive and Smart. With large user capacity and user friendly manager card.

· Compact, stylish appearance design, plastic matte technic;

· Large Capacity: 10,000 users. Support adding 9999 cards with serial numbers once.

· Support EM&HID (125KHZ) cards

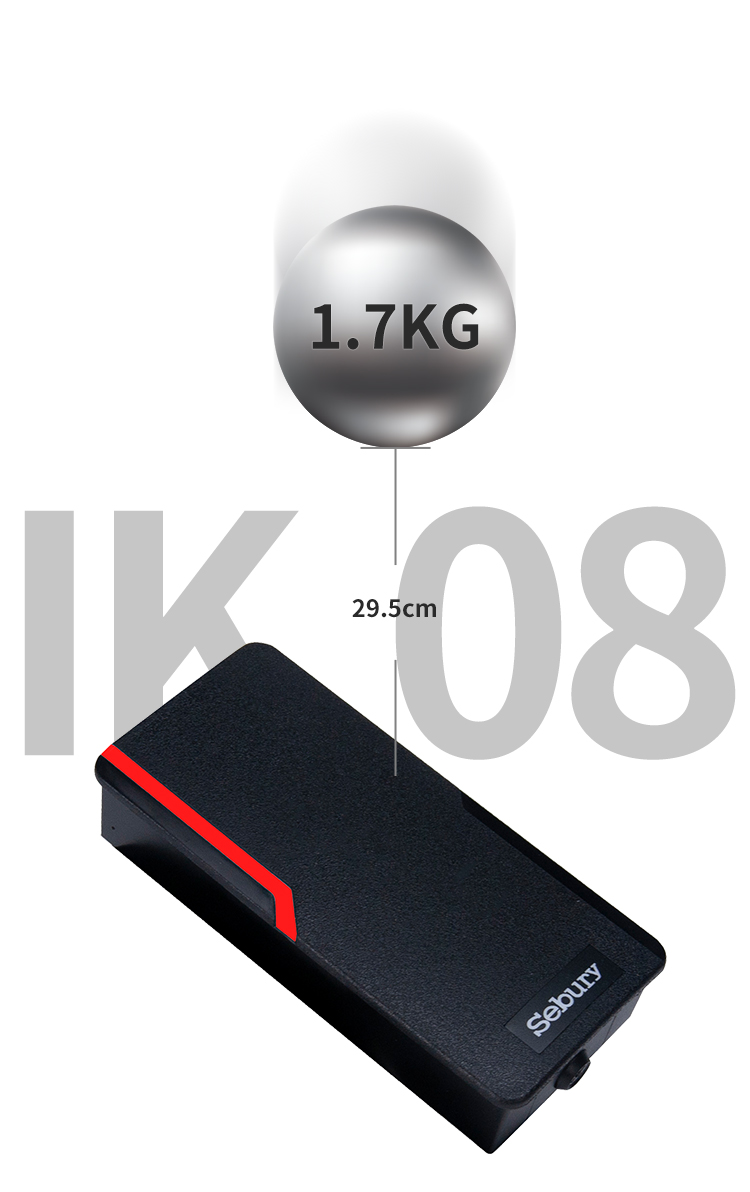

· Waterproof: Fully Potted, Confirms to IP65,IK08

· User Friendly:with the manager card, can add/delete the users directly/Infrared remote control keyboard operation;

· NMOS with heavy current drives the electric lock directly, prevent unlocking by magnetic illegally, and lock type can be set by software.

· Additional functions: anti-tamper, door magnetic, safe mode set , inter-collected , inter-locked and anti-passback.

Specifications

· Operating Voltage: DC12±10%

· Static Current : ≤15mA

· Card read range: 3-6 cm

· Operating Temperature: -40℃ ~60℃

· Operating Humidity : 0-95%

· Lock MAX Output Load: 3A

· Alarm MAX Output Load : 3A

· Manger Card: 2pcs

· Dimension: 103mm× 48mm × 23mm
