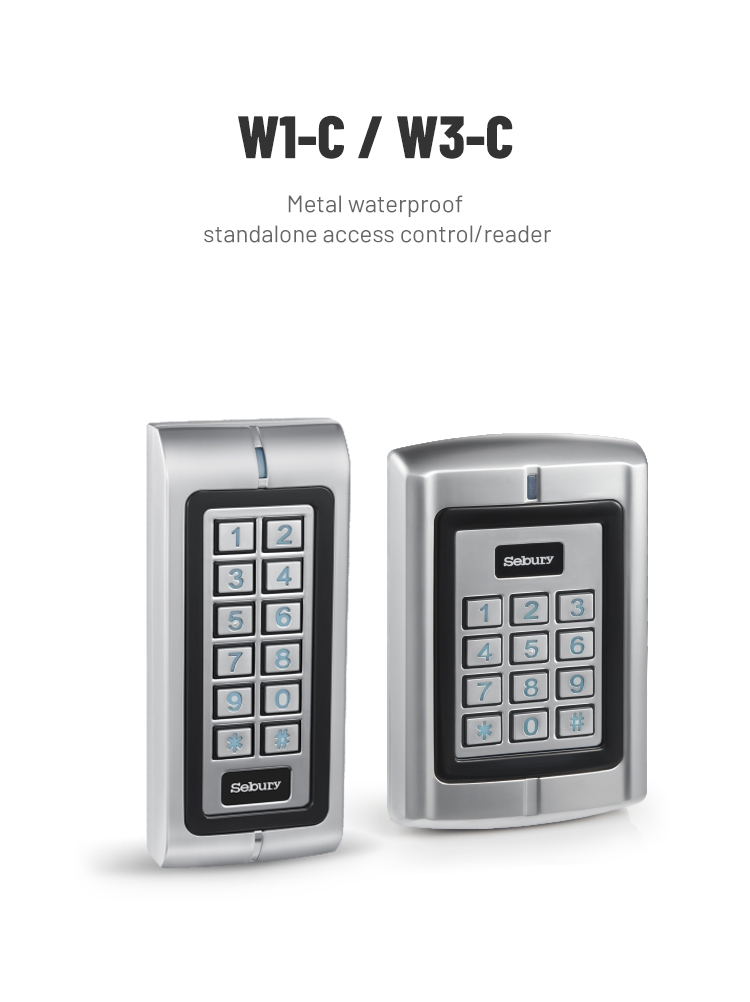

This Access control is anti-vandal and waterproof design. It support PIN and 125KHZ EM card, 3 access modes optional. Wiegand 26 output & input make it can be used as controller and slave reader. It usually installed on the courtyard, bank, prison etc. where need hign level security. And also can be used for automatic gate by its relay built-in.

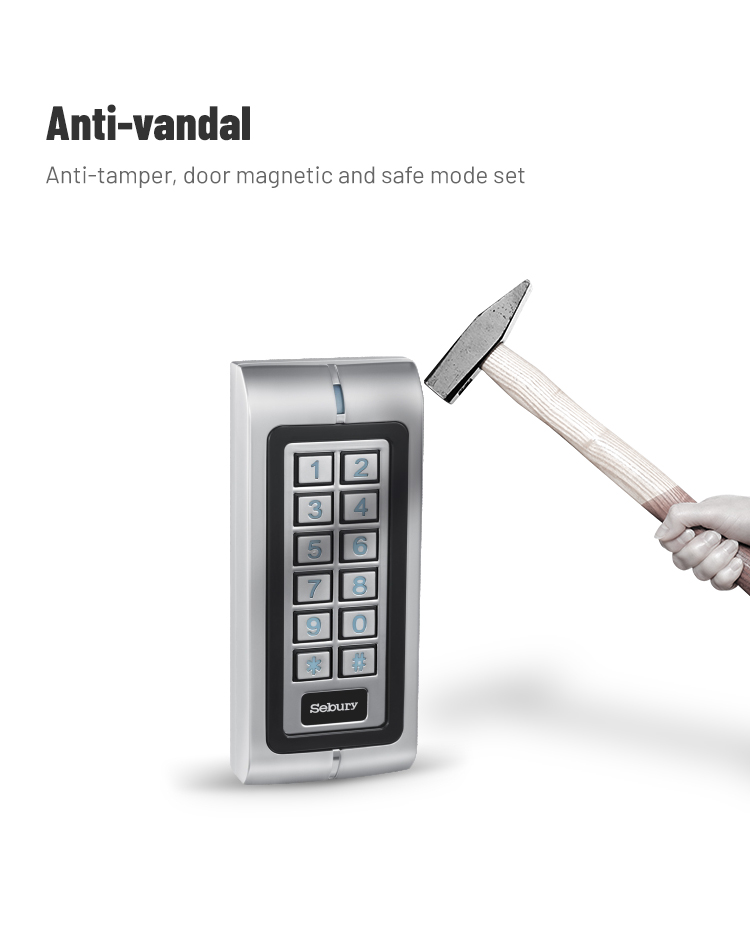

· Metal structure, anti-vandal, more secure, waterproof design
· Backlight keypad, convenient for operating in night.

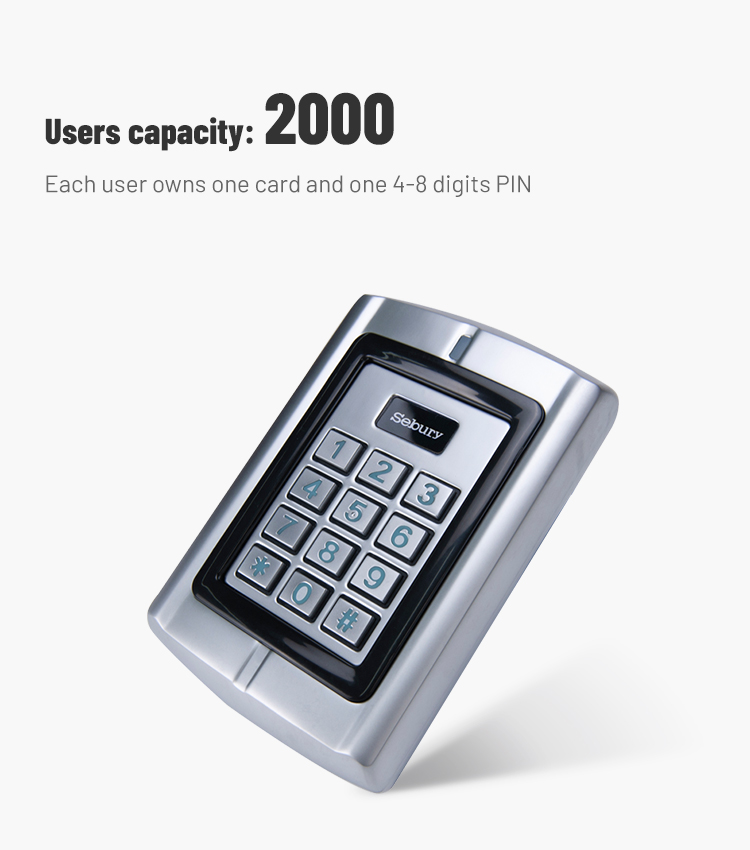

· Large capacity: 2,000 users
· Support 3 Modes Access: Card, PIN, Card+PIN.

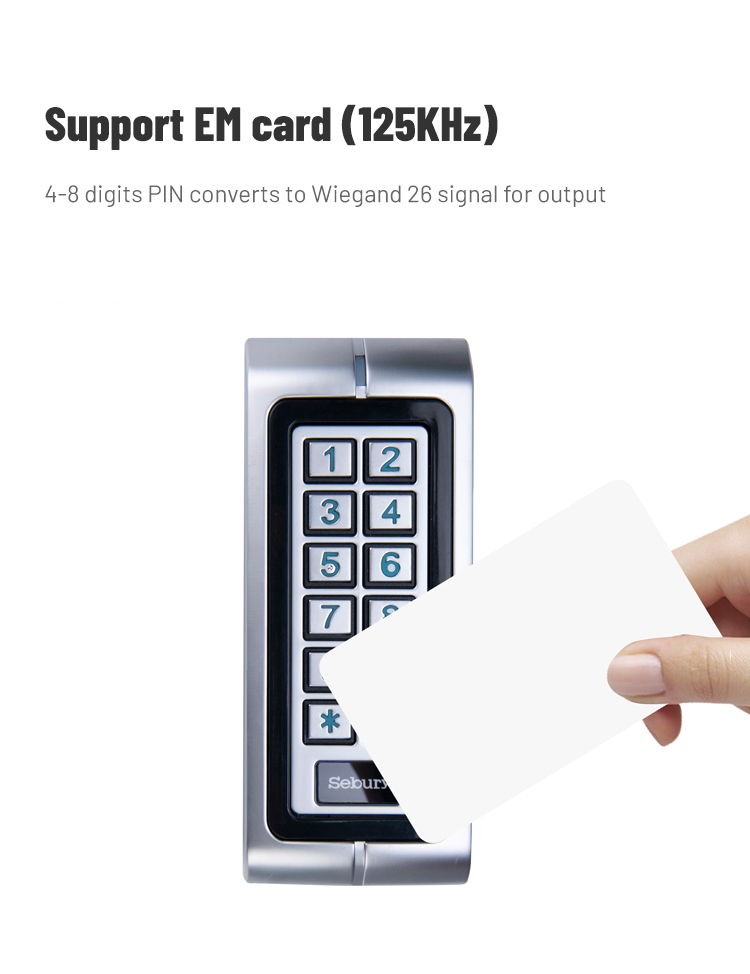

· Card Type: 125KHz EM, PIN length: 4~8 digits.
· Operating Voltage: 12-18V AC/12-24V DC.
· Very low power consumption ( ≤35mA), long service life and stable performance.
· High speed search: filled with 2,500 users, the search time < 0.1s
· Manage cards: the manage cards can add/delete the users directly, very convenient
· Wiegand 26 input & output, can work as Wiegand reader/Controller.

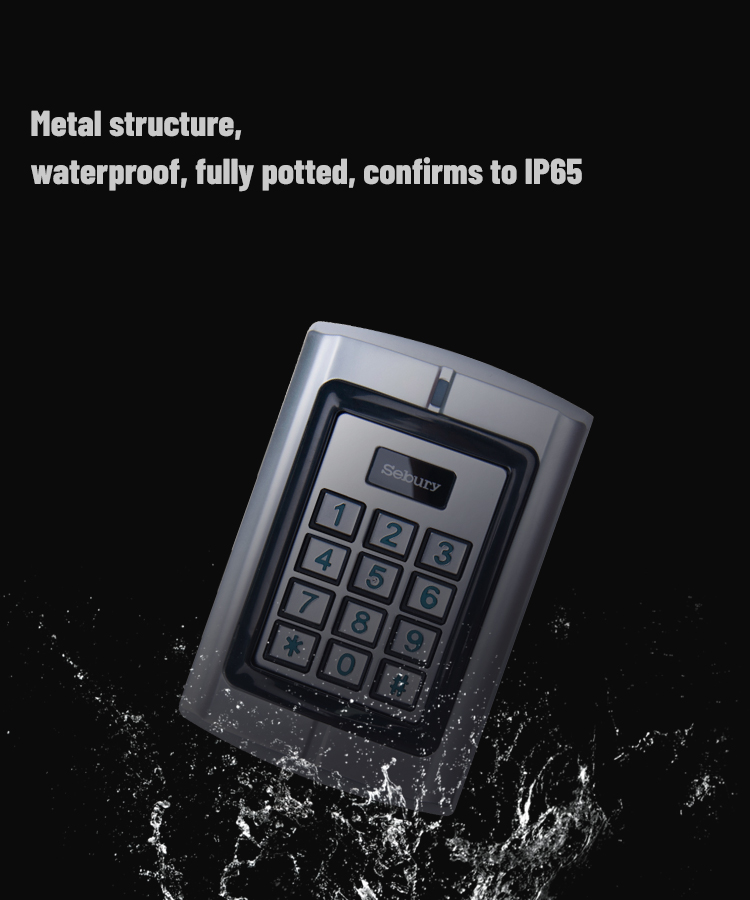

· Protective Properties: IP65 fully-potted. with anti-disassemble, alarm function, anti-static interference 15KV.

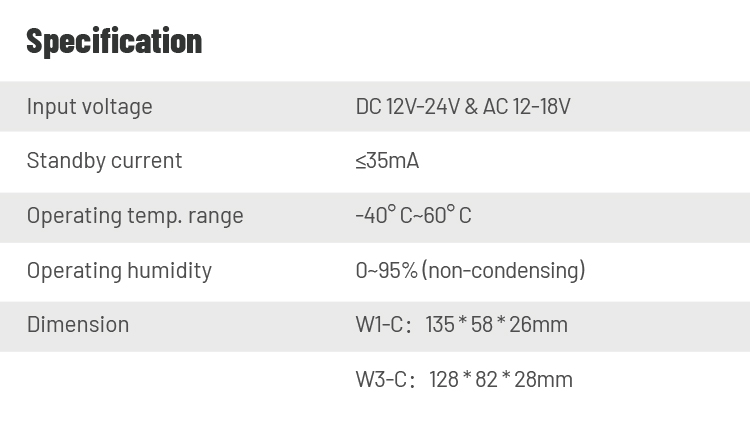

Specifications

· Operating Voltage: 12-18V AC/12-24V DC
· Adjustable Door Relay Time: 0～99s
· Static Current: ≤35mA
· Communication interface: Wiegand 26 bit
· Card Read Rang: 3-6cm> Reader Induction Time: ≤0.1s
· Operating Temperature: -40℃～60℃
· Operating Humidity: 0-95%
· Lock Output Load: 1A
· Alarm Output Load: 3A
· Antistatic: 15KV
· IP Grade: IP65
· Wiring Length: 90-100cm

· Dimensions: L 128mm×W 82mm×H 28mm
