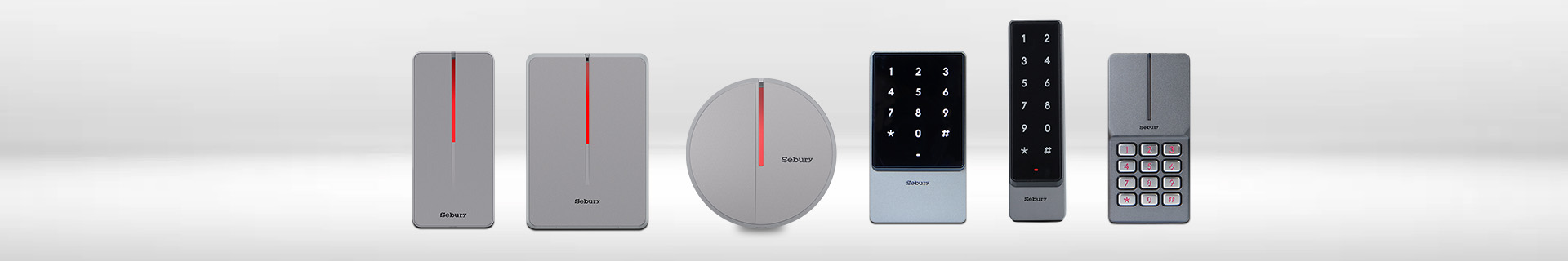

Sebury brand new access control/reader, touch panel, elegant, classic and unique design, especially suit for the high-end market, also suit for different kinds of need of the customers.

· Open the door remotely by mobile phone
· Aluminum alloy structure, waterproof, fully potted, confirms to IP65. Touch panel
· Built-in 125KHz (EM&HID card) reader part: sTouch W-w H&EM 13.56MHz(IC&CPU card, ISO14443A) reader: sTouch W-w M
· Anti tamper, anti-vandal, Antistatic 15KVDigital backlit key. The back light can be set to Normal ON, Normal OFF or Automatic mode.
· Door bell function.
· Multi-function, can be use as reader; single door controller, anti-pass back, etc, Suitable for various occasions.

Specifications

· sTouch W-w H&EM: support HID&EM card
· sTouch W-w M: support IC & CPU card
· Input voltage:DC12~24V
· Idle current:≤35mA
· Reading range: 3-6cm (HID&EM card)
                           2-6cm (IC &CPU card)
· Frequency:125KHz or 13.56MHz
· Wiegand input & output format: 26-37 bit
· Keypad transmit format: visual card No;4 bits or 8 bits of single key pressing
· Dimensions: 125*83*21.7mm(sTouch W-w)
                       158*43*21.7mm(sTouch W-s)
· Operating Temperature:-40~60℃(sTouch W-w H&EM)
                                       -20~60℃(sTouch W-w M)
· Operating Humidity：0~95%（non-condensing）

                                              Video of Functional Show

                                How to connect with mobile phone
