· Plastic matte technic, fully potted, confirms to IP65
· Support EM, HID card（125KHz）, or IC, CPU card（13.56MHz，ISO14443A）
· Wiegand 26 output, other format need to be customized, ranging from Wiegand 26 to 37.

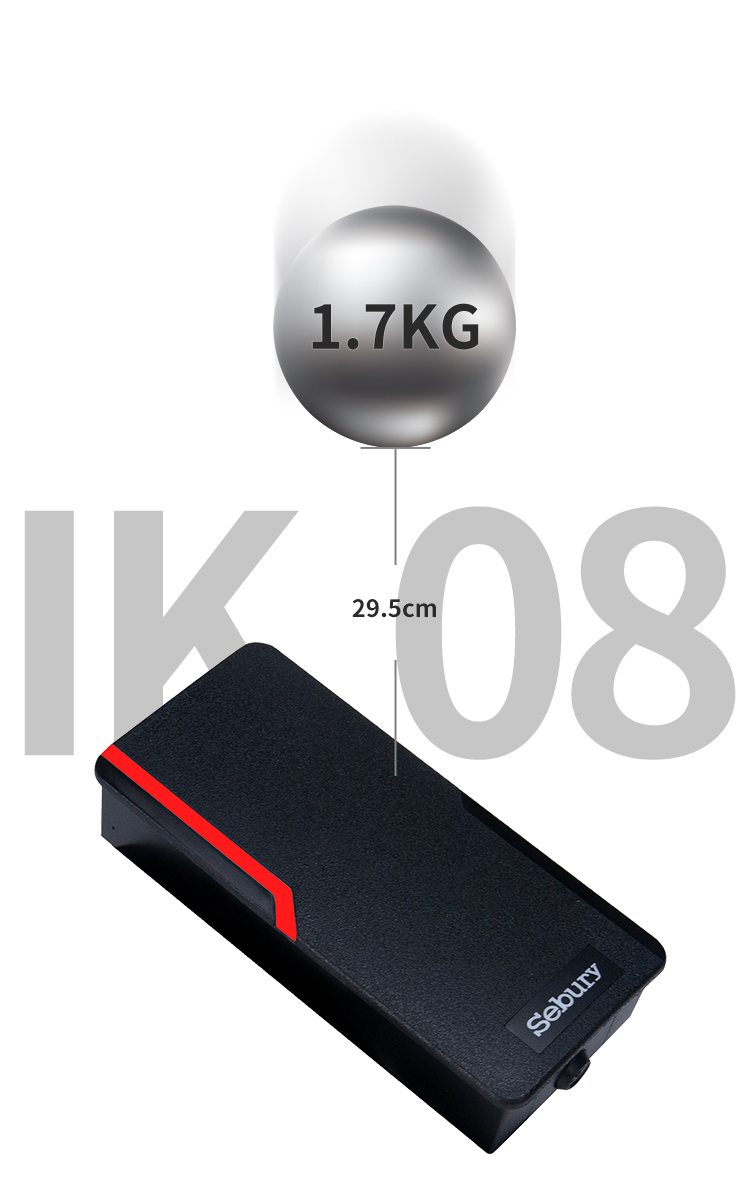

· Additional functions: anti-vandal, LED and buzzer controlled via external controller.

Specifications

· Input voltage: DC 12V±10%
· Standby current: ≤30mA
· Operating temp. range: -40℃ ～60℃
· Operating humidity: 0-95% (non-condensing)
· Dimension: 103mm × 48mm × 23mm

R2-EM:
· Card: EM card (125KHz)
· Operating temp. range: -40° C~60° C (-40~140° F)

R2-H:
· Card: HID card (125KHz)
· Operating temp. range: -40° C~60° C (-40~140° F)

R2-H&EM:
· Card: EM, HID card (125KHz)
· Operating temp. range: -40° C~60° C (-40~140° F)

R2-M:
· Card: IC, CPU card (13.56MHz, ISO14443A)
· Operating temp. range: -20° C~60° C (-4~140° F)
